Product category|Ceramic Fiber Products
Classification Temp: 1260℃
Working Temp: 1150℃
Size: Customizable
Online Time: 7*24 hours

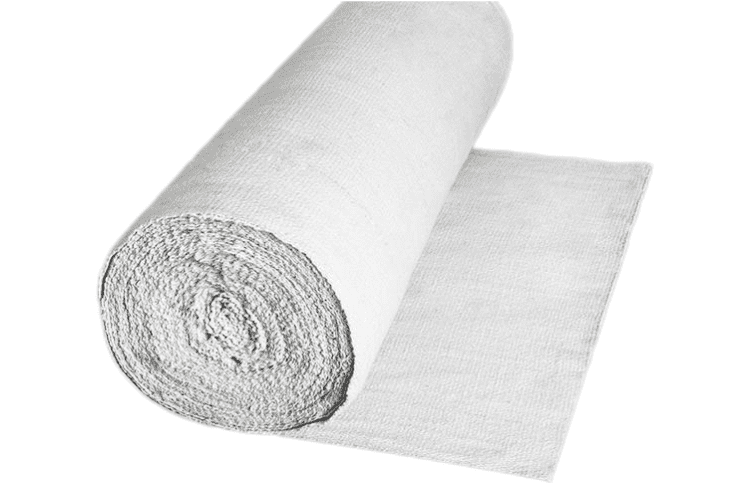

Ceramic Fiber Cloth is a high performance industrial cloth made from zirconia grade ceramic fiber yarn, reinforced by high temperature alloy wire. It is durable, long-lasting product, ideal for high temperature applications up to 1430°C. Ceramic Fiber Cloth contains approximately 18% organic fiber which burns out at high temperatures, causing some smoking and outgassing, but the cloth retains enough strength to be used as effective insulating cloth at high temperatures.

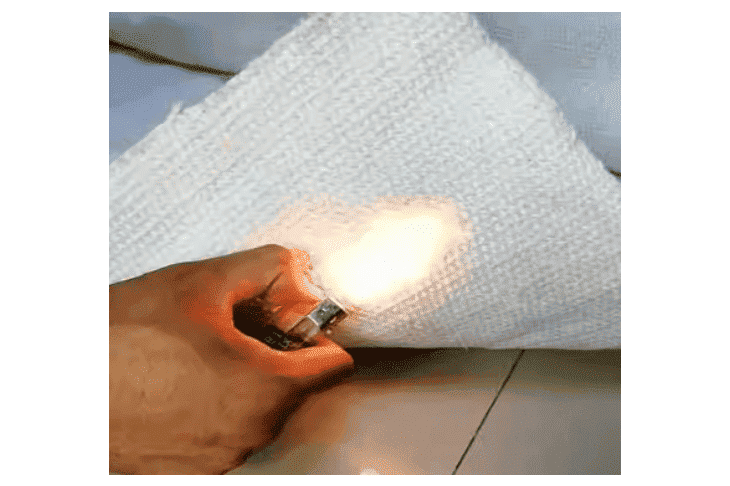

High temperature resistant
Low thermal conductivity
High flexibility
Sound proofing
| 1. Insulation and fire protection layer buildings | 2. Insulation layerof boilers of power industry |
| 3. Boilers of different building materials | 4. Insulation layerof high temperature pipes |
| 5. Insulation layer of fumnace doors and covers | 6. Furnace linings of heating equipments |
| Item | Ceramic Fiber Cloth |
| Classification Temperature (℃) | 1260℃ |
| Working Temperature (℃) | 1150℃ |
| Density(Kg/m³) | 500-550 |
| Warp Density | 48-60 Piece/10cm |
| Weft Density | 21-30 Piece/10cm |
| Organic Content(%) | ≤15 |
| Specification(mm) | L:30000mm /W:1000mm/T:2-5mm |
