Product category|Ceramic Fiber Products
Classification Temperature: ≤1430℃
Color: Pure White
Density: 160-220Kg/m³
AL203: ≥52%
Size: customizable
Online Time: 7*24 hours

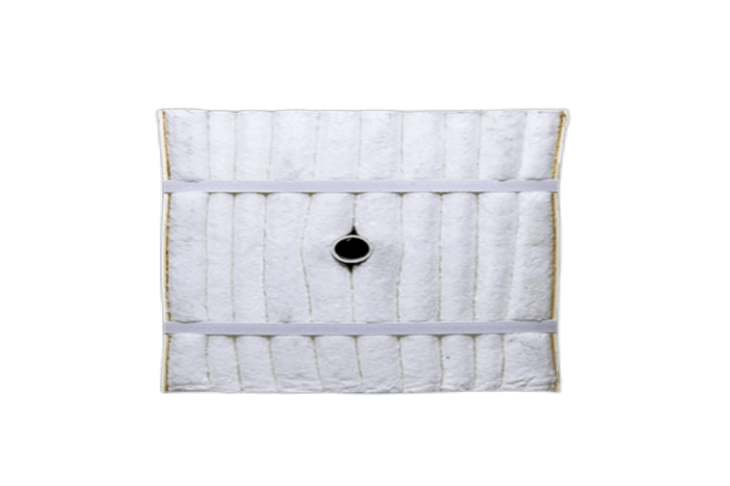

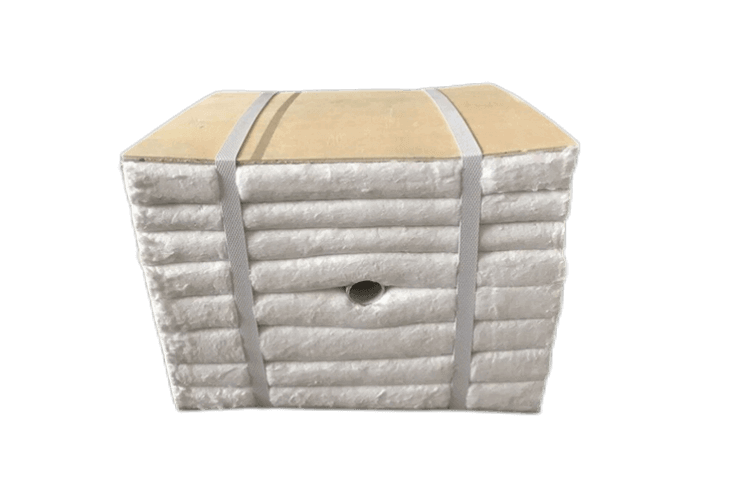

Ceramic fiber module are made from compressed ceramic fiber blanket. Ceramic fiber module is produced by various anchoring systems, white color, regular size, good refractory heat insulation effect, classification temperature 1260-1430℃, used in various kiln lining insulation and various thermal equipment lining.
Low heat capacity
Low thermal conductivity
Excellent mechanical strength
Resistance to heat-shock
1. Steel lndustry. Heat treatment furnaces Ladle cover, annealing furnace,rotary furnace,bellfurace,waking beam furace,hot air and flue pipes etc.
2. Ceramic Industry: Tunnel kiln, shuttle kin, end-fired furnaces, roller kiln.
3. Petrochemical lndustry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc
4. Heat-treatment industry: Annealing furnaces, normalizing furnaces, drawing furnaces, pit furnaces, kiln cars.
5. High-temperature equipment: For example, pot furnaces, electricity resistance furnaces and other kinds of industrial fumnaces
6. Green energy industry: Waste incinerators, RTO exhaust treatment furnace, SCR environmental catalytic stove etc.
| Description | SJ STD MODULE | SJ HP MODULE | SJ HA MODULE | SJ HZ MODULE |
| Classification Temperature(℃) | 1260 | 1260 | 1350 | 1430 |
| Chemical Composition(%) | ||||
| Al203 | ≥43 | ≥44 | ≥52 | ≥35 |
| Si02 | ≥54 | ≥55 | ≥47 | ≥49 |
| Zr02 | / | / | / | ≥15 |
| Color | White | White | White | White |
| Density (kg/m³) | 160-220 | 160-220 | 160-220 | 160-220 |
| Permanent Linear Shrinkage(%) | 1000℃x24h≤2.5 | 1100℃x24h≤2.5 | 1200℃x24h≤3.0 | 1350℃x24h≤3.0 |
| Thermal Conductivity (W/m.K) | ||||
| 400℃ | 0.10 | 0.10 | 0.10 | 0.10 |
| 600℃ | 0.18 | 0.17 | 0.16 | 0.15 |
| 800℃ | 0.20 | 0.20 | 0.20 | 0.19 |
| 1000℃ | 0.27 | 0.26 | 0.26 | 0.26 |
