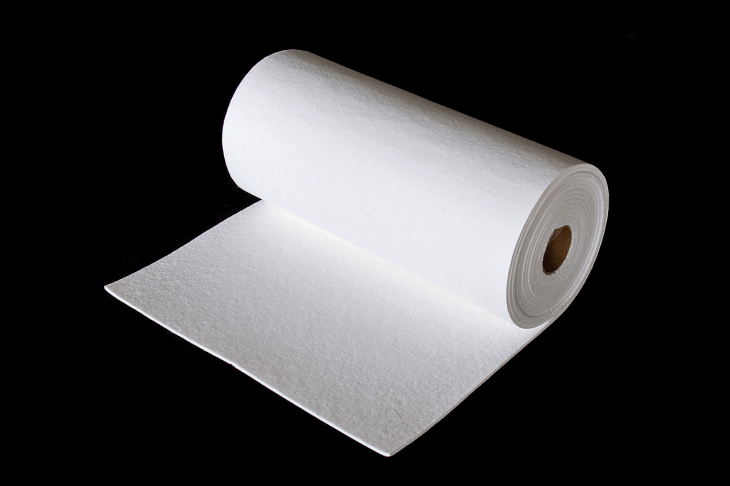

Ceramic Fiber Paper

Product category|Ceramic Fiber Products

Working Temperature: ≤1350℃
Color: Pure White
Density: 170-220Kg/m³
Compression strength: ≥0.65Mpa
AL203: 39-52%
Size: customizable
Online Time: 7*24 hours

Product Description

Ceramic fiber paper is made of advanced ceramic fibers with low slag ball content, which have high temperature resistance and insulation, high resistance to melting, extremely low thermal conductivity, chemical corrosion resistance, and thermal shock stability. Ceramic fiber paper has excellent strength, toughness, and wind resistance. Ceramic fiber products are ideal energy-saving materials for thermal equipment such as furnaces, kilns, and pipes.

Product Features

Low heat capacity

Low thermal conductivity

Excellent electrical insulation performance

Excellent processing performance

High strength and tear resistance

High flexibility

Low slag content

Excellent fire resistance performance

Product Application

1.Industrial insulation, sealing, and anti-corrosion materials

2.Insulation materials for instruments and heating elements

3.Insulation materials for automotive and aerospace industries

4.Expansion joint filling material

5.Isolation of building materials, metallurgy, and glass industries,

6.Molten metal sealing gasket

7.Fireproof materials

8.Alternative to glass fiber and asbestos fiber

Product Specification

Grade		Standard	High Aluminium	Zirconium
Classification Temperature		1260	1360	1450
WorkingTemperature (℃)		≤1100	≤1200	≤1350
Color		Pure White	Pure White	Pure White
Density(Kg/m³)		170-220	170-220	170-220
Thermal conductivity by mean temp. ( w/m.k )		0.07(400℃)0.09(600℃)0.12(800℃)	0.069(400℃)0.088(600℃)0.110(800℃)	0.068(400℃)0.087(600℃)0.100(800℃)
Compression strength(≥Mpa)		0.65	0.7	0.75
Chemical Composition(%)	AL203	42-43	51-52	39-40
	SIO2	53	44	44
	ZrO2	-	-	15-17
	Fe203+Ti203	≤1.2	≤0.3	≤0.2
	Na20+K20	≤0.5	≤0.3	≤0.2
	CaO+MgO	0.3	≤0.3	≤0.2
Size（mm）	90000x610/1220x0.5mm 60000x610/1220xlmm 30000x610/1220x2mm 20000x610/1220x3mm 15000x610/1220x4mm 12000x610/1220x5mm 10000x610/1220x6mm 7500x610/1220x8mm 6000x610/1220x10mm 5000x610/1220x12mm Customizable
Packing	Carton
