Product category|Ceramic Fiber Vacuum Formed Shape
AL2O3: 43-55%
Density: 180-220kg/m3
Thickness: 0.5-12mm
Working Temperature: 1050-1350℃
Size: Customizable
Online Time: 7*24 hours

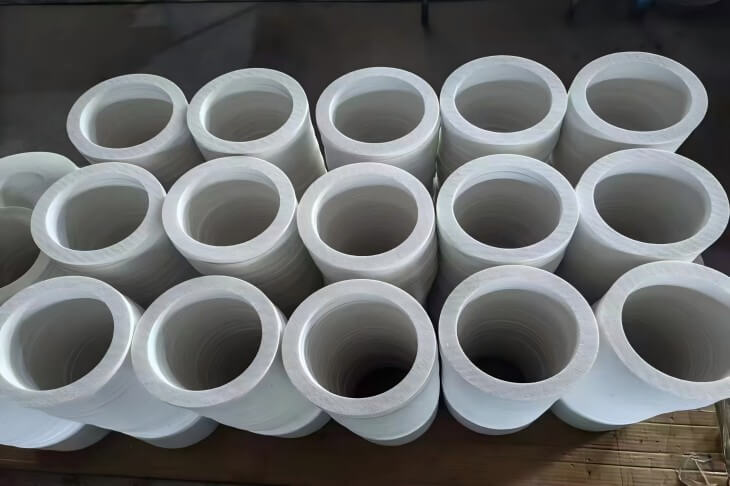

Ceramic fiber gaskets are punched or cut from ceramic fiber paper made of selected aluminum silicate ceramic fiber wool as the main raw material using a wet molding process.
Low thermal conductivity
High strength and tear resistance
Excellent processing performance
Excellent fire resistance performance
1.Industrial insulation, sealing, and anti-corrosion materials
2.Insulation materials for instruments and heating elements
3.Insulation materials for automotive and aerospace industries
| Type | Standard ceramic fiber paper | High pure ceramic fiber paper | High alumnium ceramic fiber paper | Zirconium ceramic fiber paper | |
| Chemical analysis (%) | AL203 | 43 | 47 | 55 | 38 |
| Si02 | 53 | 51 | 44 | 44 | |
| Fe203+Ti203 | ≤1.2 | ≤0.3 | ≤0.3 | ≤0.2 | |
| CaO+Mgo | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | |
| NaO+K20 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.2 | |
| Density(kg/m3) | 180-220 | 180-220 | 180-220 | 180-220 | |
| Working Temperature (℃) | 1050 | 1150 | 1250 | 1350 | |
| Thickness(mm) | 0.5-12mm | ||||
| Size(mm) | 40000*1220*1,40000*610*1;30000*1220*2 30000*610*2,20000*1220*3,20000*610*3,15000*610*4,10000*610*5 | ||||
Shengjie refractory materials’ceramic fiber products have been exported to Germany, Arabia, Saudi Arabia and other countries,which used as backing insulation for kilns,Heating equipments and provided…
Shengjie Refractory Materials provided personalized solutions and high-quality refractory bricks , achieving a mutually beneficial and successful cooperation between the two parties, which not only…
Shengjie Refractory Material supplies high-quality castables to Shuangji company and was used for cement kiln linings, iron-making furnace linings, etc. to protect equipments and structures…
