Product description

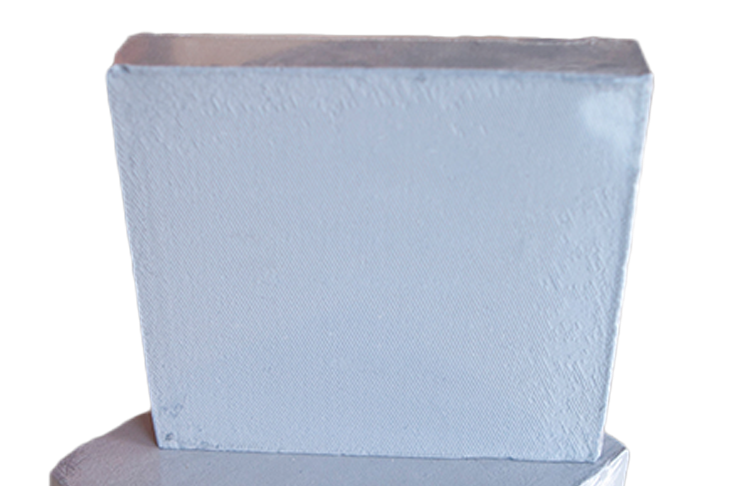

A Nano microporous insulation boards is a high - performance insulation material that utilizes nanotechnology. It's typically composed of nanoscale particles or fibers that are carefully engineered to have excellent insulation properties. For example, it may contain nano - silica, nano - alumina, or other nanomaterials. These nanoscale components can form a unique microstructure that significantly reduces heat transfer through the material.

Product Feature

1.Excellent thermal insulation performance: Nano microporous insulation boards has extremely low thermal conductivity, usually around 0.01 - 0.03W/(m・K), and some nano insulation boards have special coatings or structures on their surfaces that can reflect thermal radiation
2.Good physical properties: The density of Nano microporous insulation boards is relatively low and the weight is light. This makes it more convenient during installation and use, and will not cause excessive burden on the supporting structure. Despite the low density, the nano insulation board still has a certain mechanical strength. It can withstand a certain degree of pressure, tension and shear force without cracking or deformation
Good fire resistance: Many Nano microporous insulation boardshave flame retardant properties, and some can even reach Class A non-combustible standards. In addition to flame retardancy, nano insulation boards produce less smoke when burned and do not release a large amount of toxic and harmful gases

Product Application

Building Insulation（建筑保温）

In the construction industry, Nano microporous insulation boards are used for wall insulation, roof insulation, and floor insulation. They can help to reduce energy consumption for heating and cooling in buildings. For example, in a cold climate, the use of nano - insulation boards in the exterior walls can keep the indoor heat from escaping, thus reducing the need for excessive heating and saving energy costs.

nsulation of high-temperature equipment

In industrial production, for high-temperature equipment such as furnaces, reactors, dryers, etc., Nano microporous insulation boards can be wrapped around the outside of the equipment to reduce heat loss. This can not only improve energy utilization and reduce production costs, but also improve the temperature of the working environment. For example, using nano-insulation panels outside a ceramic furnace can reduce the furnace surface temperature by 30-50°C and reduce heat radiation to the surrounding environment.
